BACKGROUND
On Tuesday, October 17, 1989, the first major earthquake in northern California since the early 1900's hit the San Francisco Bay Area. The Loma Prieta earthquake measured 7.1 on the Richter Scale and caused widespread damage to a variety of structures in the region. Particularly hard hit were the long, two-level reinforced concrete viaduct sections of freeway in San Francisco and Oakland. The greatest damage occurred to the I-880 Cypress Viaduct, where approximately two thirds of a mile of viaduct collapsed. The loss of service of this key freeway, linking Oakland, San Francisco, Berkeley and San Jose, caused ongoing commuter problems and identified the need to evaluate different structure types for the reconstruction.

After a good deal of study, the California Department of Transportation (CALTRANS) initiated a total rebuild of approximately 7.4 miles of freeway in this area. The project was divided into seven contracts with contract a at the I-880/I-980 interchange on the northern end. The total construction value of these contracts is in excess of $500 million.

Steel in Seismic Zones This Steel Bridge Report cites the use of steel "tub" sections to rebuild a portion of a freeway viaduct damaged by a major earthquake. Steel continues to offer a number of advantages to designers of bridges and buildings in earthquake environments. 1. It can be deformed in a ductile manner--without failure. 2. Steel has the ability to absorb the energy which the earthquake is delivering to the structure. 3. It can tame tension or compression forces with similar deformation characteristics. 4. Steel can withstand numerous loading cycles before fracture. (For more information on steel's performance in seismic areas, read our Technical Bulletin on this Web site entitled, "Steel Proves Its Mettle Under Earthquake Conditions", June, 1992.)

CONTRACT E

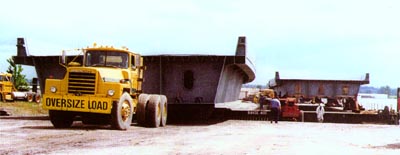

Bethlehem's Burns Harbor Division supplied the steel for the Contract E portion of the project to Universal Structural, Inc. of Vancouver, Washington. Contract E involved the I-80/I-880 interchange just east of the San Francisco-Oakland Bay Bridge, including a 2066 foot section of curved and elevated connector ramps. The design called for 13 single tub sections 7� -0 deep by 35� -6 to 37� -6 wide, with lengths varying from 131 feet to 219 feet per section. The sections ranged in weight from 250 tons to a maximum of 459 tons. All sections incorporated a steel orthotropic deck and steel barrier rails. The total weight of fabricated steel equaled 5014 tons. (See Table A below)

In addition to the size and geometric complexity of these sections, the contract included an 865 day completion clause for the general contractor, with very significant incentive and disincentive-incentive clauses. This requirement made the reliability of steel supply and fabrication crucial to the success of the project. It also provided the opportunity for the steel bridge construction industry to prove its ability to respond to such requirements in a timely and efficient manner.

BSC/USI
In response to these stringent contract clauses, USI turned to Bethlehem for assistance. Over the years, Bethlehem's Burns Harbor Division and USI had developed a strong business relationship, providing a sense of confidence that these demands could be met. In addition to the usual competitive price and on-time delivery issues, USI required very specific sequencing of material deliveries in order to enhance the efficiencies of their operations. Quality product was essential in order to avoid potentially length CALTRANS materials lab evaluations and approvals. Customer service and production scheduling communications abilities were essential for tracing and scheduling the shop crews. Mill production flexibility was necessary to react to both shop and mill production falldowns--if they occurred. Transportation capabilities from the mill to the shop were critical. A complicating factor was the large plate sizes which exceeded USI's blast-cleaning capability, thus requiring an intermedia te processing step prior to delivery to the shop. Finally, USI wanted a single supplier capable of providing the full range of plate sizes, as well as the processing and transportation services.

Bethlehem's Burns Harbor Division met all of these requirements. The combination of the 110� and 160� plate mills were capable of the full range of pate sizes required. Production scheduling personnel visited USI at their facility, and established a schedule satisfying both USI needs and plate mill availabilities. This line of communication was maintained throughout the project. Any falldowns, although at a minimum, were immediately resupplied so that no disruption of the shop schedules occurred. Burns Harbor, with its experience in processing and transportation, coordinated both, again with no disruptions to shop operations. No material rejections by CALTRANS occurred. Finally, Burns Harbor maintained its policy of competitive pricing, and a very cost-effective structure was achieved.

Table A.

Girder and Barrier Weights
	A1	A2	A3	A4
Girder Length Girder Weight Barrier Weights Total Weight	156'-2 1/16 726,288 125,040 851,328	200'11 829,471 138,701 968,172	218'-9 11/16 917,363 151,464 1,068,827	146' 11 7/16 628,958 101,163 730,121
	A5	A6	A7	A8
Girder Length Girder Weight Barrier Weights Total Weight	146'-11 3/8 697,025 103,455 800,480	122'-9 15/16 538,133 83,623 621,756	130'-11 7/8 499,351 117,649 617,000	190'-7 9/16 723,307 93,535 816,815
	A9	A10	A11	A12	A13
Girder Length Girder Weight Barrier Weights Total Weight	151'-8 3/8 653,549 76,996 730,545	137'-4 1/8 571,061 68,549 639,610	148'-1 15/16 570,110 71,085 641,195	181'-4 1/16 707,155 89,247 796,402	132'-2 7/8 545,865 67,010 612,875

CHRONOLOGICAL SUMMARY

Official Contract Award to USI: ..........April 21, 1995

Initial Material Order Placed:............... April 4, 1995

Initial Material Received:...................... June 6, 1995

Fabrication Started:..............................June 8, 1995

Fabrication Completed: .......................May 24, 1996

Initial Shipment: ...................................November 30, 1995

Final Shipment: ....................................May 26, 1996

5,000+ tons were delivered, fabricated and shipped in 418 days. The first segment was shipped to General Contractor 241 days from contract award.

CONCLUSION Bethlehem remains as the steel plate supplier dedicated to the fabricator and his needs. Bethlehem provides unmatched capabilities to its fabricator-customers--from size availability to flexible production schedules to technical support--that allow the satisfaction of the most demanding schedules and applications. In conjunction with the efforts of USI, Contract E of the Cypress Reconstruction Project was completed on time and within budget, thus demonstrating the abilities of steel in the bridge construction market.

CREDITS

Owner: CALTRANS, Sacramento, CA

Engineer: ICF Kaiser Engineering & Construction Group, Oakland CA

Fabricator: Universal Structural, Inc., Vancouver, WA

Erector: Kiewit/Marmolejo, A Joint Venture

General Contractor: Kiewit/Marmolejo, A Joint Venture
